Year: 2025, Volume: 11, Issue: 2, Pages: 210-216

Original Article

Anatomic Variations of Paranasal Sinuses and Nasal Cavity based on CT Scan and it’s Clinical Correlation

Received Date:03 September 2024, Accepted Date:01 March 2025, Published Date:05 September 2025

Abstract

Background: To determine the frequency of anatomic variations of paranasal sinuses and nasal cavity and to correlate the anatomic variations with sinonasal mucosal disease. Methods: It was a retrospective & descriptive study. One hundred and twenty five cases of age more than 15 years were included who underwent CT PNS study for clinical history of rhinosinusitis. Analysis toolpak software was used for calculation of p- value. Association of frequency of anatomic variations and radiological evident mucosal diseases were calculated by using regression analysis. Results: No or minimal mucosal disease were found in 30 patients (24 %) and moderate to significant mucosal diseases were found in 95 patients (76 %) irrespective of presence or absence of anatomical variants. The most common anatomic variations were agger nasi (59.2%), nasal septal spur (48.8%) & ethmoid bullosa (48%). Statistically significant correlation was found between the sinusitis & nasal septal spur and between sinusitis & deviated nasal septum. Conclusions: Certain types of paranasal sinus variations (nasal septal spur & deviated nasal septum) may predispose to development of sinusitis. MDCT is the modality of choice for the evaluation of the anatomical variations of the paranasal sinuses.

Keywords

Anatomic variations, Paranasal Sinuses, Computed Tomography



Introduction

Paranasal sinuses (PNS) are the air-filled cavities around the nasal cavity within the facial bone and within the skull. These are maxillary sinus (largest), ethmoid sinus, frontal sinus and sphenoid sinus. There are few imaging modalities for the assessment of these sinuses. Previously, conventional radiography of the skull with various projections was used before the advent of Computed Tomography (CT).  Due to limited evaluation of the ethmoid sinus, sphenoid sinus and osteomeatal complex (OMC) by conventional radiography, CT scan widely gained acceptance.1 Multiplanar high resolution CT (HRCT) has the excellent ability to delineate both bony anatomic details as well as pathology involving the PNS. Precise knowledge of anatomy of the PNS is essential for the radiologist and for the sinus surgeon.2 It provides a preoperative roadmap for the endoscopic sinus surgeon. However, there is always an increased radiation dose to the lens and thyroid gland, so care should be taken to minimize the radiation dose to these organs. Radiation dose by ‘low dose sinus CT protocol’ was found to be 5.53+/-0.82 mGy for lens and 0.63+/-0.43 mGy for thyroid as compared to the ‘standard sinus CT protocol’. 3

There are multiple anatomic variants of paranasal sinuses and commonly visualized in the CT scan of PNS.45 Common variations are deviated nasal septum, agger nasi cells, haller cells, onodi cells and concha bullosa.6 Uncommon variations include pneumatization of the uncinate process, large ethmoid bulla, supra-orbital cells, crista galli and even in the hard palate and nasal septum. 78

Some of the variations have been reported to be associated with chronic rhinosinusitis due to stenosis of the drainage pathway. However, several studies show no significant correlation with rhinosinusitis. 9

Failure to recognize certain variations like onodi cells, haller cells, deep olfactory groove, pneumatised anterior clinoid process etc. will lead to postoperative complications. 61011

The purpose of this study is to determine the frequency of anatomic variations of paranasal sinuses and nasal cavity and also to correlate their association with radiological significant sinonasal mucosal disease in our population (Eastern India).

Methods

It was a retrospective & descriptive study. The study has been approved by the Institutional Ethical Committee (IEC).  Data was collected from the past one year (January 2019 – December 2019) stored in the PACS (picture archiving and communicating system) in the Radiodiagnosis department and from the medical record section for the clinical history.

The images were reviewed by two experienced radiologists (6-8 years of experience) using multiplanar reconstructions (in axial, sagittal and coronal section) in bone and soft tissue windows. Images were analysed for the following details – deviated nasal septum, agger nasi, pneumatised uncinate process, bulla ethmoidalis, concha bullosa, paradoxical middle turbinate, haller cell, onodi cell, supraorbital cell, pneumatization of the crista galli, clinoid process, pterygoid plate and hard palate etc.

One hundred and twenty five cases of age more than 15 years were included in this study who underwent CT PNS study for clinical history of rhinosinusitis of varying severity from the ENT and General Medicine department. Sinus infections and neoplasm not destructing the bone or/and not altering the PNS anatomy were included in this study.

Patients underwent sinus surgery, facial trauma and malignancy or infection leading to bony destruction of PNS were excluded from the study. Patients of paediatric age groups were also excluded from the study because of ongoing development of the sinuses.

The machine used was a 128-slice helical MDCT (Toshiba Aquallion) scanner. Plain (without contrast) CT as well as plain and contrast-enhanced CT scans both were evaluated.

All the data was entered into the Microsoft excel sheet and the data were analyzed. Analysis toolpak software was used for calculation of p- value, whenever necessary. Association of frequency of anatomic variations and radiological evident mucosal diseases were calculated by using regression analysis.

Frequency of occurrence of all the sinonasal variations was compared between patients who were having minimal or no apparent radiological evidence of rhinosinusitis and those having radiological evidence of moderate to significant rhinosinusitis.

Results

CT images of 125 patients were evaluated in which 78 (62.4%) were male and 47 (37.6%) were female.

Table 1: Distribution of Age-range

Age range

Number of cases

Percentages (%)

15-24

52

41.6

25-34

28

22.4

35-44

16

12.8

45-54

15

12

55-64

7

5.6

65-74

4

3.2

75-84

3

2.4

Age range was 15-80 years. Mean age was 32.14+-15.99 years. Maximum numbers of cases fall in the age range of 15 – 24 yrs.

Table 2: Distribution of mucosal diseases

Param- eters

No or minimal mucosal disease

Moderate to significant mucosal diseases

Number of pati- ents

30

Male - 16

95

Male - 62

Female - 14

Female - 33











Age range

15-64 years

20-84 years







Mean age

31.91±15.99 years

31.94±15.95 years

No or minimal mucosal disease were found in 24% of patients with age-range 15-64 years and moderate to significant mucosal diseases were found in 76% patients with age-range 20-84 years irrespective of presence or absence of anatomical variants of paranasal sinuses.

Table 3: Distribution of the anatomic variations and it’s relation to sinusitis

PNS Variations

Pre sent

No or minimal mucosal disease (n=30)

Moderate to signi ficant mucosal diseases (n=95)

P - value

Deviated Nasal Septum

50

8 (16 %)

42 (84 %)

0.049

Nasal Septal spur

61

14 (22.95 %)

47 (77.05 %)

0.027

Concha bullosa

32

7 (21.88 %)

25 (78.12 %)

0.54

Paradoxical middle turbinate

28

9 (32.14 %)

19 (67.86 %)

0.77

Agger nasi

74

16 (21.62 %)

58 (78.38 %)

0.16

Haller cells

9

1 (11.11 %)

8 (88.89 %)

0.59

Onodi cells

19

2 (10.53 %)

17 (89.47 %)

0.24

Ethmoid bullosa

60

15 (25 %)

45 (75 %)

0.13

Intersphenoid septal deviation

28

9 (32.14 %)

19 (67.86 %)

0.37

Optic nerve deviation

12

2 (16.67 %)

10 (83.33 %)

0.64

Vidian nerve deviation

20

2 (10 %)

18 (90 %)

0.75

Supra-orbital cells

52

9 (17.31 %)

43 (82.69 %)

0.12

Pneumatiz- ation of









1. Anterior clinoid process

44

10 (22.73 %)

34 (77.27 %)

0.97

2. Pterygoid plate

41

12 (29.27 %)

29 (70.73 %)

0.44

3. Crista galli

6

0 (0 %)

6 (100 %)

0.89

4. Dorsum sella

10

3 (30 %)

7 (70 %)

0.85

5. Hard palate

28

5 (17.86 %)

23 (82.14 %)

0.63

Frequency of occurrences of paranasal sinuses variations were more in patients with moderate to significant mucosal disease. P value for DNS (deviated nasal septum) and nasal septal spur were <0.05, indicating statistically significant correlation.

Table 4: Laterality of the PNS variations

PNS Variations

Total

Unilateral (%)

Bilateral (%)

Concha bullosa

32

21 (65.63 %)

11 (34.37 %)

Paradoxical middle turbinate

28

14 (50 %)

14 (50 %)

Agger nasi

74

16 (21.62 %)

58 (78.38 %)

Haller cells

9

3 (33.34 %)

6 (66.66 %)

Onodi cells

19

10 (52.63 %)

9 (47.37 %)

Ethmoid bullosa

60

10 (16.67 %)

50 (83.33 %)

Optic nerve deviation

12

11 (91.67 %)

1 (8.33 %)

Vidian nerve deviation

20

10 (50 %)

10 (50 %)

Supra-orbital cells

52

12 (23.08 %)

40 (76.92 %)

Pneumatization of







1. Anterior clinoid process

44

14 (31.82 %)

30 (68.18 %)

2. Pterygoid process

41

20 (48.78 %)

21 (51.22 %)

3. Hard palate

28

3 (10.71 %)

25 (89.29 %)

Lamina papyracea dehiscence

28

5 (17.86 %)

23 (82.14 %)

Concha bullosa and pneumatisation of pterygoid process were commonly unilateral. Whereas bilateral variation was found to be greater in agger nasi followed by ethmoid bullosa.

The most common anatomic variations were agger nasi, nasal septal spur (Figure 1 a), ethmoid bullosa (Figure 1 b), supra-orbital cells, deviated nasal septum (Figure 2 a & b) and pneumatization of anterior clinod process (35.2%), pterygoid process (32.8%) (Figure 3 a) and hard palate (22.4 %) (Figure 3 b) in their decreasing frequency. The least common variations were concha bullosa (25.6%) (Figure 4 a), paradoxical middle turbinate (22.4 %) (Figure 4 b), Intersphenoid septal deviation (22.4 %), optic nerve (9.6%) (Figure 4 c) and vidian nerve (16%) deviation, onodi cells (15.2%) (Figure 4 d), haller cells (7.2%) (Figure 4 e), pneumatization of dorsa sella (8%) and crista galli (4.8%) & dehiscence of lamina papyracea (22.4 %). In some cases, we also found the presence of hypoplasia of maxillary sinus (2 cases), frontal sinus (4 cases) and sphenoid sinus (1 case), absent frontal sinuses in 6 cases & sinus septation (maxillary, frontal and ethmoid) in 28 cases. Sphenoid sinus septation was seen in 12 patients.

https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/94e4619a-08b0-4789-9cd2-aacd3b89d789image1.png
Figure 1: a) Axial image of 45 year old female with complain of left nasal obstruction shows left sided nasal septal spur impinging upon left inferior turbinate. b) Coronal view of PNS of 19 year old female show b/l ethmoid bullosa which are mildly compressing bilateral maxillary ostium (pink arrows)
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/94e4619a-08b0-4789-9cd2-aacd3b89d789image2.png

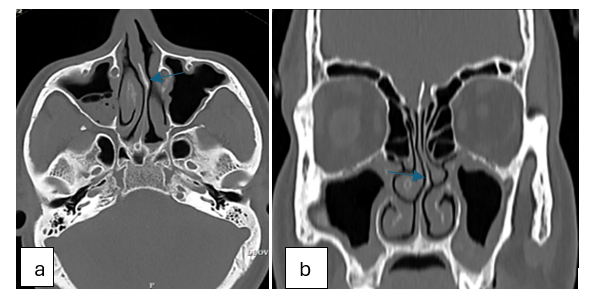

Figure 2: a) Axial and b) coronal view of 35 year old male patient shows reverse C-shaped deviated nasal septum with bilateral maxillary polyopsis (blue arrow) extending upto the osteo-meatal complex
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/94e4619a-08b0-4789-9cd2-aacd3b89d789image3.png
Figure 3: a) Coronal view of PNS of 35 year old male patient shows pneumatization of b/l pteygoid process (red arrow) and clinoid process (blue arrow). b) Coronal view of PNS of 80 year old male patient shows pneumatization of b/l hard palate (red arrow)
https://s3-us-west-2.amazonaws.com/typeset-prod-media-server/94e4619a-08b0-4789-9cd2-aacd3b89d789image4.png

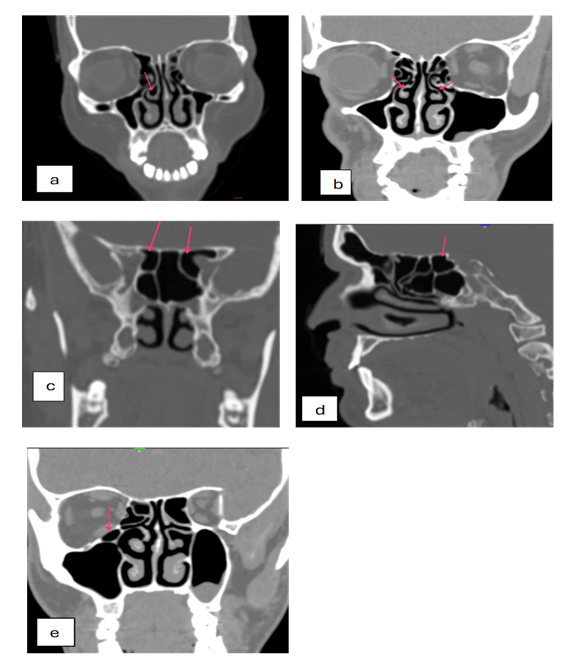

Figure 4: a) Coronal image of 40 year old female with complain of recurrent sinusitis shows right sided concha bullosa causing obstruction of the left maxillary ostium (pink arrow). Subtle focal mucosal thickening of the left maxillary sinus. b) Coronal section of PNS of 19 year old female with acute onset sinusitis shows b/l paradoxical middle turbinate (pink arrows). c) Coronal view of PNS of 18 year old male patient with complain of rhinosinusitis shows sphenoid sinus septations with optic nerve protrusion (left>right) into the sphenoid sinus (pink arrow). d) Sagittal section of 20 year old female shows Onodi cell which is extension of posterior ethmoid air-cells superior to sphenoid sinuses (pink arrow). e) Coronal section of 25 year old male patient shows haller cells which is extension of anterior ethmoid air-cells inferior to the right orbit (pink arrow)

Discussion

 The most common anatomic variation was agger nasi cells in our study which constituted 59.2% (74 out of 125) of the study population. Among them 78.38% were bilateral and 21.62% were unilateral (56.25% on the left side among these). Minimal or no sinusitis was seen in 16 (21.62%) and moderate to significant sinusitis was present in 58 (78.38%) patients with insignificant p value (0.16). Hence no significant correlation was found between the sinusitis and agger nasi cells in our study. Yadav R R et al. reported that agger nasi cells was the commonest (75.8 %) variation.12 It was found to be the 2nd common variation with prevalence of 70.6% in a study conducted by Shipilberg et al. 9 Anitha Christina Mathuram, Senthil Kumar Aiyappan et al. reported that there was no statistical correlation which corresponded to our study.13 However Espinosa W et al.  and Kaya M et al.  showed statistically significant relationship between agger nasi cells and sinusitis. 1415

The second common variation was nasal septal spur which constituted 48.8% (61 out of 125). We found that the spur was most common on the left side. Minimal or no sinusitis was seen in 14 (22.95%) and moderate to significant sinusitis was present in 47 (77.05%) patients with significant p value (0.027). Hence significant correlation was found between the sinusitis and nasal septal spur. Kaya M et al. found that 8.2% of the patients were having septal spur without any significant association with sinusitis. 15

The third common variation was ethmoid bullosa which constituted 48% (60 out of 125). Among them 83.33% were bilateral and 16.67% were unilateral (70% of them were present on the right side). Moderate to significant sinusitis was present in 45 (75%) patients with insignificant p value (0.13). Hence no significant correlation was found. Kaya M et al. found that 46.9% of patient with ethmoid bullosa was having sinusitis without any significant association. 15

The fourth common variation was supra-orbital cells which constituted 41.6% (52 out of 125). Among them 76.92 % were bilateral and 23.08 % were unilateral (75% of them were present on the left side). Moderate to significant sinusitis was present in 43 (82.69%) patients with insignificant p value (0.12). Hence no significant correlation was found between the sinusitis and supra-orbital cells. Nouraei SA showed the incidence of supraorbital ethmoid cell was 6% and it posed significant postoperative complications {immediate post-operative complications (orbital hematoma, CSF leak, meningitis) as well as late post post-operative complications (meningocoele, lacrimal duct injury)}, if not evaluated pre-operatively. 1016

The fifth common variation was deviated nasal septum which constituted 40% (50 out of 125). Commonest type was S-shaped, followed by C-shaped and then reversed-C shaped. Range of septal deviation was from 3 mm to 11.2 mm. Minimal or no sinusitis was seen in 8 (16%) and moderate to significant sinusitis was present in 42 (84%) patients with significant p value (0.049). Hence significant correlation was found between the sinusitis and deviated nasal septum. Studies conducted by Anitha Christina Mathuram, Senthil Kumar Aiyappan et al. in 2019, Gupta S et al. in 2016 and Devareddy et al. showed that DNS was the commonest variation detected by CT scan.131718 Espinosa W et al. showed a statistically significant relationship between deviated septum with sinusitis which was in favour of our study. 14

These discrepancies of associations of sinusitis with various anatomical variation of paranasal sinuses between our study and other authors may be due to difference in the demographic profile of the study population along with inflammation of the drainage pathway leading to stenosis.

Limitations

The association of different anatomic variations of PNS with one another was not analysed. Patients were divided into 2 groups, one with no or minimal mucosal thickening and another with moderate to severe mucosal thickening. It had been observed that patients with clinically significant sinusitis had no or minimal mucosal thickening on CT scan. It could be due to the patient might have had significant sinusitis at the time of presentation to hospital and which could have resolved at the imaging due to time lag. The study had been done on a small population size.

Conclusions

Statistically significant correlation was found between the sinusitis & nasal septal spur and between sinusitis & deviated nasal septum in our study. Rest of the PNS variations didn’t show statistically significant correlation. So, we conclude that certain types of paranasal sinus variations may increase the risk of developing sinusitis due to obstructing the drainage pathway. Clinical evaluation of the disease should be of prime importance and if the patient is not responding significantly to the treatment, then CT should complement it to rule out surgical causes. So, for the pre-operative assessment, MDCT is the modality of choice to identify anatomical variations of the paranasal sinuses.

Abbreviations

  • PNS - Paranasal sinuses

  • CT - Computed Tomography

  • OMC - Osteomeatal complex

  • HRCT - High resolution CT

  • IEC - Institutional Ethical Committee

  • PACS - Picture archiving and communicating system

  • DNS - Deviated nasal septum

Disclosure

Competing interests: None.

Funding: None.

Author’s Contribution: Manisha Kumari- image interpretation, statistical analysis & literature search, Govind Kumar– conceptualization and design, Vinod Kumar - literature search and manuscript preparation, Sanjay Kumar Suman –image interpretation and editing, Sarita Mishra– manuscript review.

Acknowledgement: We are thankful to our staff and technicians for their valuable effort to make this study complete. We also want to thank Dr Shishir for his significant contribution on statistical analysis of the patient data.

References

  1. White PS, Cowan IA, Robertson MS. Limited CT scanning techniques of the paranasal sinusesJournal of Laryngology & Otology1991;105(1):2023. Available from: https://doi.org/10.1017/s0022215100114720
  2. Perez-Pinas I, Sabate J, Carmona A, Catalina-Herrera CJ, Jimenez-Castellanos J. Anatomical variations in the human paranasal sinus region studied by CTJournal of Anatomy2000;197(Pt 2):221227. Available from: https://doi.org/10.1046/j.1469-7580.2000.19720221.x
  3. Lam SY, Bux SI, Kumar G, Ng KH, Hussain AF. A comparison between low-dose and standard-dose non-contrasted multidetector CT scanning of the paranasal sinusesBiomedical Imaging and Intervention Journal2009;5(3). Available from: https://doi.org/10.2349/biij.5.3.e13
  4. Piskunov IS, Emel'ianova AN. Variants of the anatomical structure of frontal sinuses based on the results of X-ray computed tomographyVestnik otorinolaringologii2011;1:1621. Available from: https://pubmed.ncbi.nlm.nih.gov/21378730/
  5. Baldea V, Indrei A, Ciupilan C, Scutariu MD. Anatomical variations of landmarks in endoscopic surgery of the paranasal sinuses revealed by MRI imagingRevista medico-chirurgicala a Societatii de Medici si Naturalisti din Iasi2010;114(2):490503. Available from: https://pubmed.ncbi.nlm.nih.gov/20700992/
  6. Kantarci M, Karasen RM, Alper F, Onbas O, Okur A, Karaman A. Remarkable anatomic variations in paranasal sinus region and their clinical importanceEuropean Journal of Radiology2004;50(3):296302. Available from: https://doi.org/10.1016/j.ejrad.2003.08.012
  7. Sivasli E, Sirikci A, Bayazýt YA, Gümüsburun E, Erbagci H, Bayram M, et al. Anatomic variations of the paranasal sinus area in pediatric patients with chronic sinusitisSurgical and Radiologic Anatomy2003;24(6):400405. Available from: https://doi.org/10.1007/s00276-002-0074-x
  8. Azila A, Irfan M, Rohaizan Y, Shamim AK. The prevalence of anatomical variations in osteomeatal unit in patients with chronic rhinosinusitisMedical Journal of Malaysia2011;66(3):191194. Available from: https://pubmed.ncbi.nlm.nih.gov/22111438/
  9. Shipilberg KA, Daniel SC, Doshi AH, Lawson W, Som PM. CT of anatomic variants of the paranasal sinuses and nasal cavity: Poor correlation with radiologically significant rhinosinusitis but Importance in Surgical planningAmerican Journal of Roentgenology2015;204(6):12551260. Available from: https://doi.org/10.2214/ajr.14.13762
  10. Nouraei SA, Elisay AR, Dimarco A, Abdi R, Majidi H, Madani SA, et al. Variations in paranasal sinus anatomy : implications for the pathophysiology of chronic rhinosinusitis and safety of endoscopic sinus surgeryJournal of Otolaryngology - Head & Neck Surgery2009;38(1):3237. Available from: https://pubmed.ncbi.nlm.nih.gov/19344611/
  11. Tomovic S, Esmaeli A, Choudhary OJ, Shukla PA, Chan NJ, Liu JK, et al. High resolution computed tomography analysis of the prevalence of onodi cellsLaryngoscope2012;122(7):14701473. Available from: https://doi.org/10.1002/lary.23346
  12. Yadav RR, MAA, Humagian M, Mishra D. Assessment of anatomic variations of nose and paranasal sinuses in multidetector computed tomographyJournal of Institute of Medicine Nepal2017;39(1):4954. Available from: https://jiomnepal.edu.np/index.php/jiomnepal/article/view/722
  13. Mathuram AC, Aiyappan SK, Agarwal S, Valsala NHR. Assessment of Sinonasal Anatomical Variants using 128-Slice MDCT in Patients with Chronic RhinosinusitisInternational Journal of Contemporary Medicine Surgery and Radiology2019;4(2):120126. Available from: http://dx.doi.org/10.21276/ijcmsr.2019.4.2.27
  14. Kaya M, Cankal F, MG, Apaydin N, Tekdemir I. Role of Anatomic Variations of Paranasal Sinuses on the Prevalence of Sinusitis Computed Tomography Findings of 350 PatientsNigerian Journal of Clinical Practice2017;20(11):14811488. Available from: https://doi.org/10.4103/njcp.njcp_199_16
  15. Hoang JK, Eastwood JD, Tebbit CL, Glastonbury CM. Multiplanar Sinus CT:A Systematic approach to imaging before Functional Endoscopic Sinus SurgeryAmerican Journal of Roentgenology2010;194(6):527536. Available from: https://doi.org/10.2214/AJR.09.3584
  16. Gupta S, Gurjar N, Mishra HK. Computed tomographic evaluation of anatomic variations of paranasal sinuses regionInternational Journal of Research in Medical Sciences2016;4(7):29092913. Available from: https://doi.org/10.18203/2320-6012.ijrms20161975
  17. Devareddy MM, Devakar S, . Evaluation of Anatomical Variations in Nose and Paranasal Sinuses by using Multidetector Computed TomographyInternational Journal of Contemporary Medicine Surgery and Radiology2019;4(3):146151. Available from: http://dx.doi.org/10.21276/ijcmsr.2019.4.3.32
